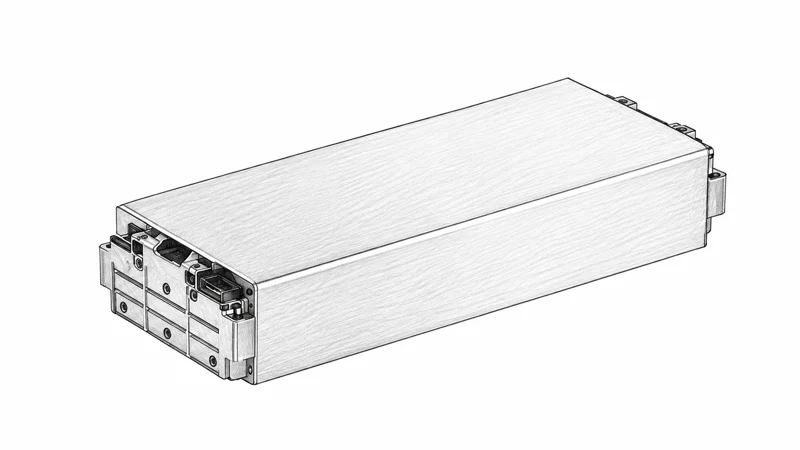

VDA 590 3P8S Battery Module

VDA 590 3P8S Battery Module

Specifications

Cell configuration
3P8S
Cathode / Anode
NCMA / Graphite
Capacity
234.0 Ah
Nominal voltage
29.52 V
Minimum energy
6.91 kWh
Dimensions
589 × 225.76 × 108.58 mm
Weight
31.0 kg
Minimum energy density
223 Wh/kg
Max charge power(10s)
18.1 kW
Max discharge power(10s)
40.1 kW
Fast charging
SOC 8–80% · 30 min (25°C)
Operating temperature
−30–60°C

VDA 590 3P8S Battery Module

VDA 590 3P8S is an NCMA automotive battery module with a 3P8S configuration, 234.0 Ah capacity, 29.52 V nominal voltage and at least 6.91 kWh energy. It measures 589 × 225.76 × 108.58 mm, weighs 31.0 kg, and provides at least 223 Wh/kg.

Published ten-second charge and discharge power are 18.1 kW and 40.1 kW at 25°C, 50% SOC and beginning of life. Fast-charging performance is SOC 8–80% · 30 min (25°C); operating temperature is -30 to 60°C.
