Toyota

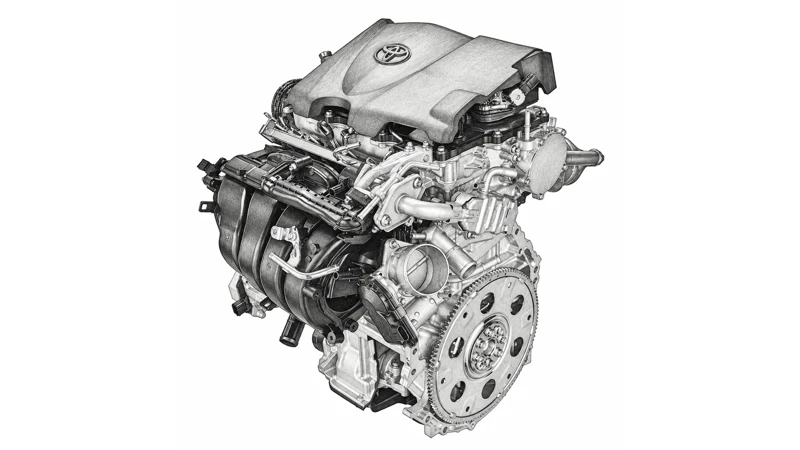

2.5 Dynamic Force

2.5 Dynamic Force

Specifications

Displacement
2,487 cc
Cylinders
4
Bore × stroke
87.5 × 103.4 mm
Injection
D-4S

Fast combustion and thermal efficiency

The Dynamic Force design combines a long stroke, fast combustion, D-4S injection and variable controls to reduce cooling, friction and exhaust losses. The original 2.5-litre conventional and hybrid versions achieved peak thermal efficiencies of 40% and 41%, with compression ratios of 13:1 and 14:1.

Models

2.5 gasoline

Application
Engine power
151 kW @ 6,600 rpm
Engine torque
250 Nm @ 4,800 rpm
Compression ratio
13:1

Initial manufacturer engine-only ratings, distinct from vehicle system output.

2.5 hybrid

Application
Engine power
130 kW @ 5,700 rpm
Engine torque
220 Nm @ 3,600–5,200 rpm
Compression ratio
14:1

Initial manufacturer engine-only ratings, distinct from vehicle system output.
