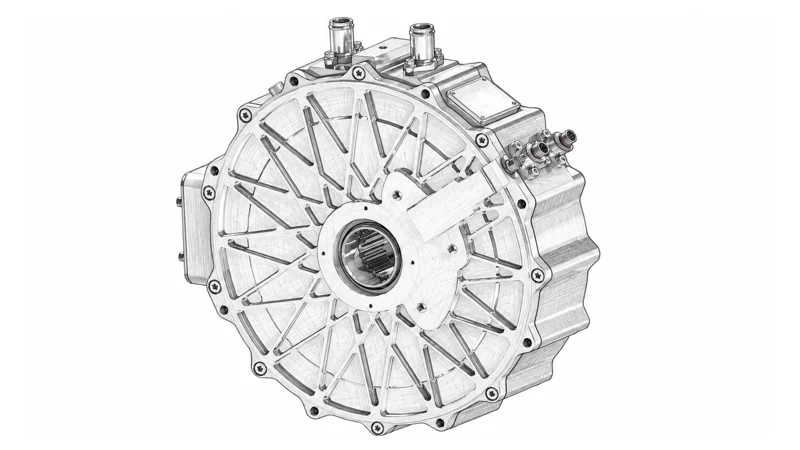

750R Axial-Flux Motor
The 750 R is a low-speed, high-torque axial-flux motor. Its 368 mm diameter and 98 mm axial length form a compact disc-shaped package weighing 37 kg.
The product specification table gives 790 Nm peak torque at 450 Arms,200 kW peak power at 700 VDC and 100 kW at 400 VDC. Speed range is 0–3,250 rpm. Continuous torque is 400 Nm with 40°C coolant; continuous power at 3,000 rpm is up to 70 kW. Through-shaft mounting and integrated position and temperature sensors are provided.
