ZF

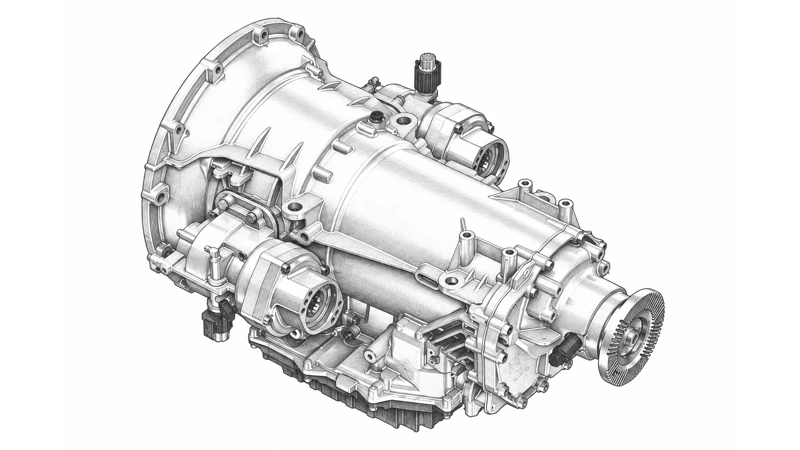

PowerLine 8 AP 1200 S

PowerLine 8 AP 1200 S

Specifications

Forward gears
8
Input torque
1,200 Nm
Dry weight
149 kg
Length
768 mm
Engine connection
SAE 2

Eight-speed commercial automatic

PowerLine combines a torque converter with lock-up clutch, torsional damper and integrated control unit. The 8 AP 1200 S accepts 1,200 Nm and has ratios from 4.89 in first to 0.64 in eighth. Side PTO connections supply auxiliary equipment.
